Compute

Compute Executor: Statistical Data Summaries

The Compute Executor generates statistical summaries of data point values over configurable time periods. Calculate averages, minimums, maximums, standard deviations, and other statistical measures to gain insights from your time-series data and reduce storage requirements for long-term analysis.

Info: This is an Executor node type that can be executed to perform work by the execution of a parent node. When triggered, it retrieves historical data from the time-series database and computes the requested statistical operation.

Info: This feature uses TargetingNodeMetaData, which means it can be configured to read from a source Data Point’s historical data and write computed results to a target Data Point. This enables distributing computed summaries across your server mesh.

Overview

Compute Executors analyze historical time-series data to produce meaningful statistical summaries. Instead of processing every individual data point, you can aggregate data over hours, days, or weeks to identify trends, monitor performance, and archive long-term statistics while conserving storage space.

Key Features

• Time Range Selection: Minute, Hour, Day, Week, Month, Year
• Multiple Operations: Average, Mean, Median, High, Low, Sum, Count, Range, StdDev
• Historical Analysis: Queries time-series database for data samples
• Remote Storage: Send computed results to data points on other servers
• Trend Detection: Identify patterns over time
• Data Reduction: Compress large datasets into summary statistics
• Flexible Scheduling: Trigger via cron for periodic summary generation

Compute Processing Flow

graph TD
    A[Parent Node Triggers] --> B[Read Source Data Point]
    B --> C[Calculate Time Range]
    C --> D[Query Time-Series Database]
    D --> E{Data Available?}
    E -->|No| F[Log Warning]
    E -->|Yes| G[Extract Values]
    G --> H[Apply Statistical Operation]
    H --> I[Create Summary Snapshot]
    I --> J[Update Target Data Point]
    J --> K[Execute Children]

Supported Statistical Operations

Operation	Description	Use Case
AVERAGE / MEAN	Arithmetic mean of all values	Temperature trends
MEDIAN	Middle value when sorted	Robust average (ignores outliers)
HIGH / MAX	Maximum value in range	Peak detection
LOW / MIN	Minimum value in range	Trough detection
SUM	Total of all values	Energy consumption totals
COUNT	Number of data points	Activity level
RANGE	Difference between high and low	Variability measure
FIRST	First value in time range	Starting value
LAST	Most recent value	Current value
STDDEV	Standard deviation	Data spread/consistency

Time Range Options

Range	Description	Sample Count Example
MINUTE	Last 60 seconds	60+ samples (1/sec)
HOUR	Last 60 minutes	3600+ samples
DAY	Last 24 hours	86400+ samples
WEEK	Last 7 days	604800+ samples
MONTH	Last 30 days	2.6M+ samples
YEAR	Last 365 days	31.5M+ samples

How It Works

When a Compute Executor runs:

1. Trigger: Parent node (typically Cron Timer) activates the executor
2. Source Identification: Identifies which Data Point to analyze
3. Time Range Calculation: Computes start time based on range selection
4. Database Query: Retrieves all samples from time-series database in range
5. Value Extraction: Converts samples to numeric values
6. Statistical Computation: Applies selected operation to values
7. Result Snapshot: Creates new snapshot with computed value
8. Target Update: Writes summary to target Data Point
9. Distribution: Target can be on any Krill Server in mesh network

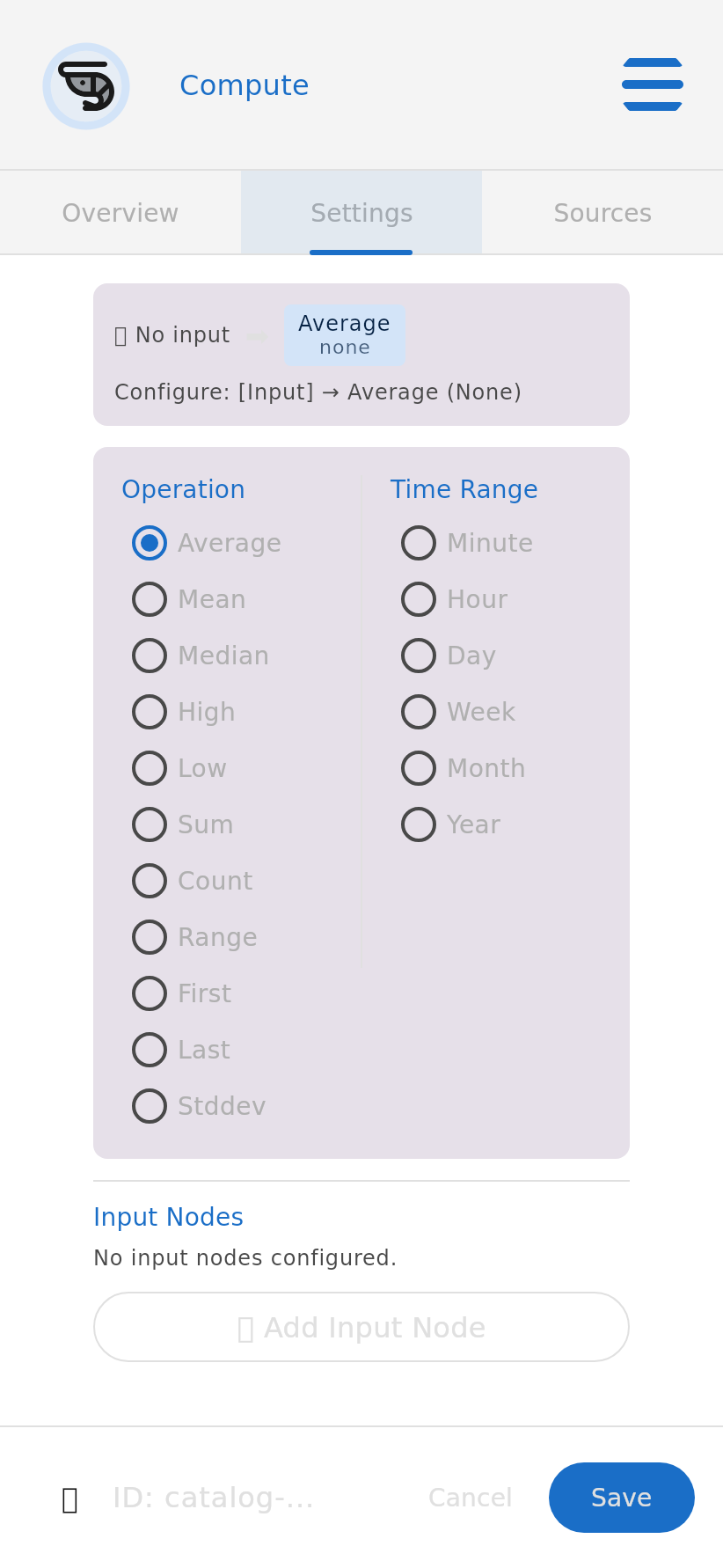

Configuration

Field	Description	Required
operation	Statistical operation to perform	Yes
range	Time range to analyze	Yes
sources	Source Data Point ID (historical data)	Yes
targets	Target Data Point ID (summary destination)	Yes

Use Cases

• Hourly Averages: Compute average temperature each hour
• Daily Summaries: Calculate daily energy consumption totals
• Weekly Reports: Generate weekly performance statistics
• Trend Analysis: Track maximum/minimum values over time
• Data Archival: Store summaries while purging raw data
• Alerting: Trigger alerts based on statistical thresholds
• Dashboard Metrics: Display summary statistics in real-time
• Performance Monitoring: Track equipment efficiency over time

Example Workflows

Hourly Temperature Average:

1. Trigger: Cron Timer (every hour on the hour)
2. Executor: Compute
   • Operation: AVERAGE
   • Range: HOUR
   • Source: Temperature Data Point (raw readings)
   • Target: Hourly Temp Average Data Point
3. Result: One summary value per hour

Daily Energy Consumption:

1. Trigger: Cron Timer (midnight daily)
2. Executor: Compute
   • Operation: SUM
   • Range: DAY
   • Source: Power Usage Data Point (watts)
   • Target: Daily Energy Total (kWh)
3. Result: Total energy consumed per day

Weekly Peak Detection:

1. Trigger: Cron Timer (Sunday at midnight)
2. Executor: Compute
   • Operation: HIGH
   • Range: WEEK
   • Source: Pressure Data Point
   • Target: Weekly Peak Pressure
3. Result: Maximum pressure recorded each week

Statistical Quality Control:

1. Trigger: Cron Timer (every 6 hours)
2. Executor: Compute (AVERAGE)
3. Executor: Compute (STDDEV)
4. Executor: Calculation (coefficient of variation)
5. Trigger: Threshold (alert if too variable)

Data Archival Strategy

Compute enables efficient long-term data retention:

Raw Data (1 sample/sec)
  └─> Hourly Averages (keep 1 week)
      └─> Daily Summaries (keep 1 month)
          └─> Monthly Stats (keep forever)

This reduces storage from millions of samples to hundreds while preserving trends.

Integration with Distributed Architecture

Since targets can be on any Krill Server:

Edge Server (collects raw data)
  └─> Compute Executor
      └─> Target: Central Archive Server

This allows edge devices to process and summarize data locally, then send only summaries to central servers for long-term storage.

Multi-Operation Analysis

Chain multiple Compute executors for comprehensive analysis:

1. Compute AVERAGE → Average value
2. Compute STDDEV → Variability
3. Compute HIGH → Peak value
4. Compute LOW → Minimum value
5. Compute RANGE → Total variation

All from the same time period of source data.

Performance Considerations

• Sample Count: Larger time ranges process more samples
• Database I/O: Queries hit the time-series database
• Frequency: Balance summary frequency vs. system load
• Cleanup: Use summaries to justify purging old raw data

Best Practices

• Schedule Wisely: Run hourly summaries at :00, daily at midnight, etc.
• Target Organization: Create dedicated summary data points
• Data Retention: Define retention policies for different granularities
• Validation: Ensure source data points have sufficient history
• Monitoring: Log compute operations for debugging
• Backup Strategies: Archive summaries to remote servers
• Documentation: Label summary data points clearly

Example: Complete Monitoring System

Temperature Sensor (1 sample/sec)
  ├─> Hourly Compute (AVERAGE) → Hourly Temp
  ├─> Daily Compute (HIGH) → Daily Max Temp
  ├─> Daily Compute (LOW) → Daily Min Temp
  └─> Weekly Compute (STDDEV) → Weekly Temp Variation

Each summary provides different insights while reducing storage needs.

The Compute Executor is essential for transforming raw time-series data into actionable statistical insights and managing long-term data efficiently.
